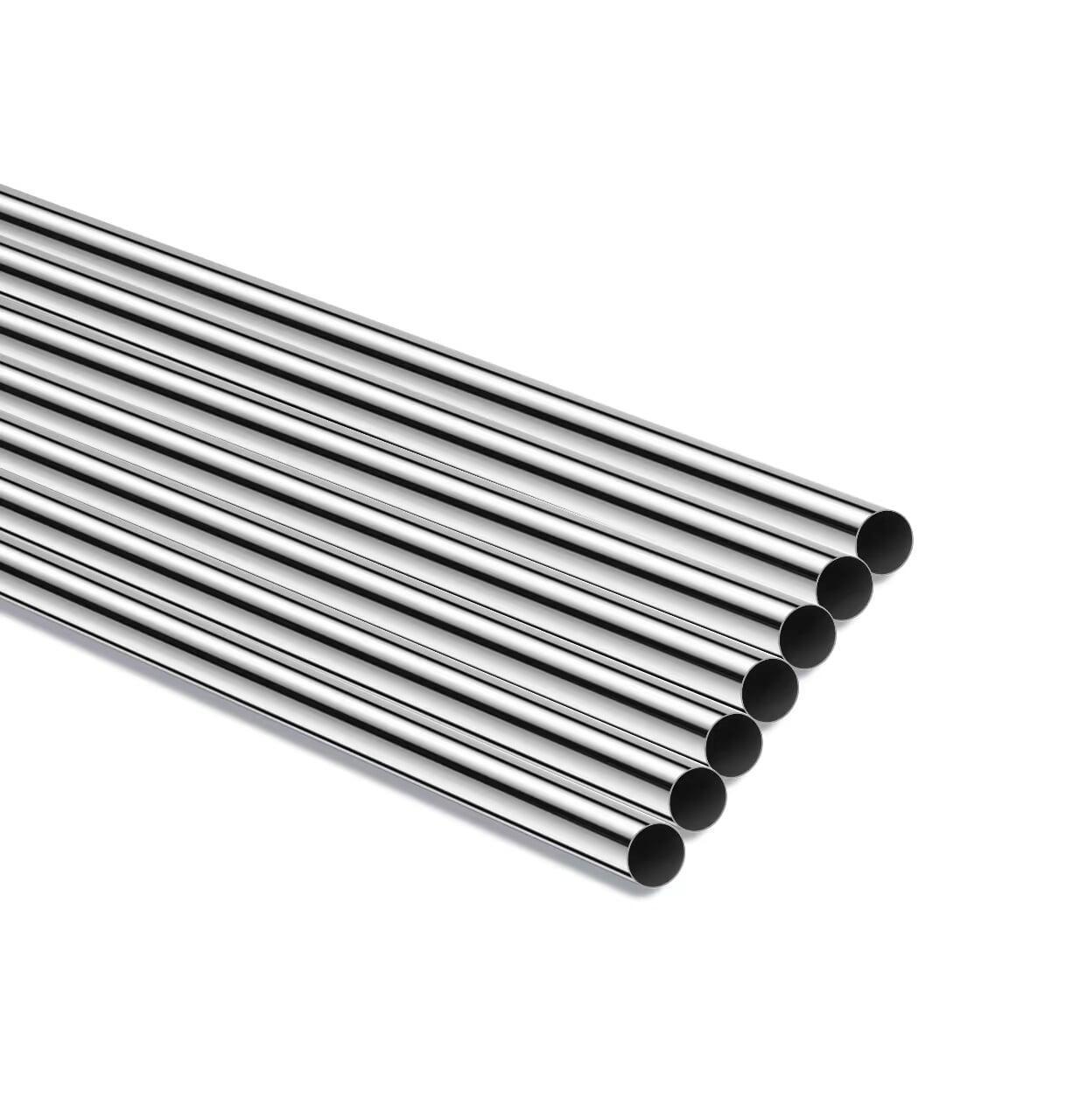

Nitinol Tube
Nitinol Tube
Nitinol tubes are widely used in the medical field due to their unique shape memory and superelastic properties. These features make Nitinol ideal for minimally invasive medical devices where flexibility, resilience, and biocompatibility are essential.
Features
Features
Our medical-grade nitinol tubes (grain size G ≥ 8) is available with uniform wall thickness.
The tubes are ASTM F2063 compliant and of high purity with the inclusion size ≤10μm and the area percentage ≤0.5%.
Surface
The outer surface Ra ≤ 0.1 μm and the inner surface Ra ≤ 0.6 μm.
The inner surface is available in either oxidized or oxide-free status.
The outer surface is available in either oxidized or pickled status.
Size Range
OD: 0.18 - 16.0 mm
Wall thickness: 0.025 - 3.0 mm
Order Information
| OD (mm) | OD Tolerance (mm) | ID Tolerance (mm) | Wall Thickness (mm) | WT Tolerance (mm) |
| 0.18 - 0.5 | ± 0.002 | ± 0.005 | 0.020 - 0.12 | ± 0.003 |
| 0.5 - 1.0 | ± 0.005 | ± 0.008 | 0.025 - 0.30 | ± 0.005 |
| 1.0 - 3.0 | ± 0.010 | ± 0.010 | 0.025 - 0.40 | ± 0.008 |
| 3.0 - 6.0 | ± 0.010 | ± 0.015 | 0.05 - 1.05 | ± 0.008 |
| 6.0 - 9.0 | ± 0.015 | ± 0.020 | 0.07 - 2.00 | ± 0.010 |
| 9.0 - 12.0 | ± 0.020 | ± 0.020 | 0.10- 2.00 | ± 0.010 |
| 12.0 - 16.0 | ± 0.020 | ± 0.030 | 0.10 - 3.00 | ± 0.010 |
Applications
Applications
Laser-Cutting Stents
Guidewires
